GEDA 3700 Z/ZP
Description

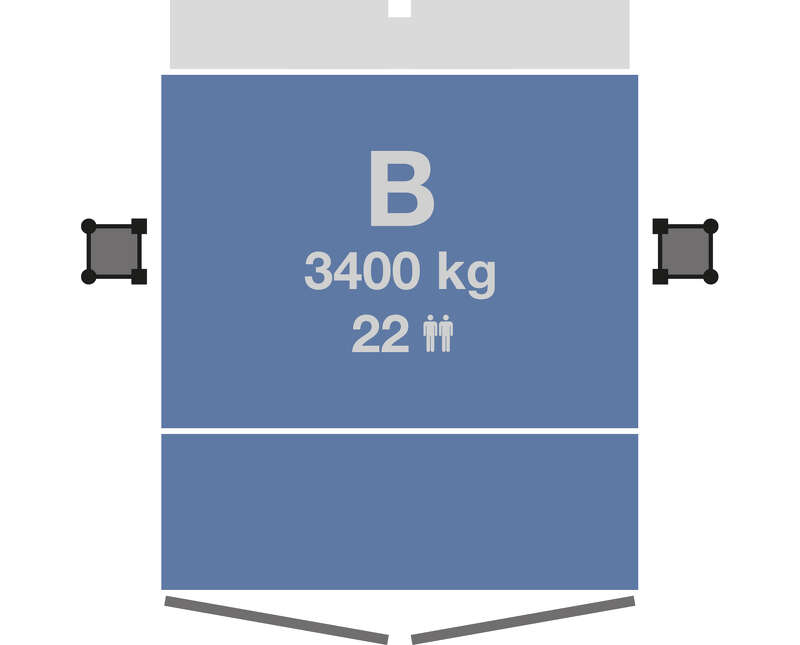

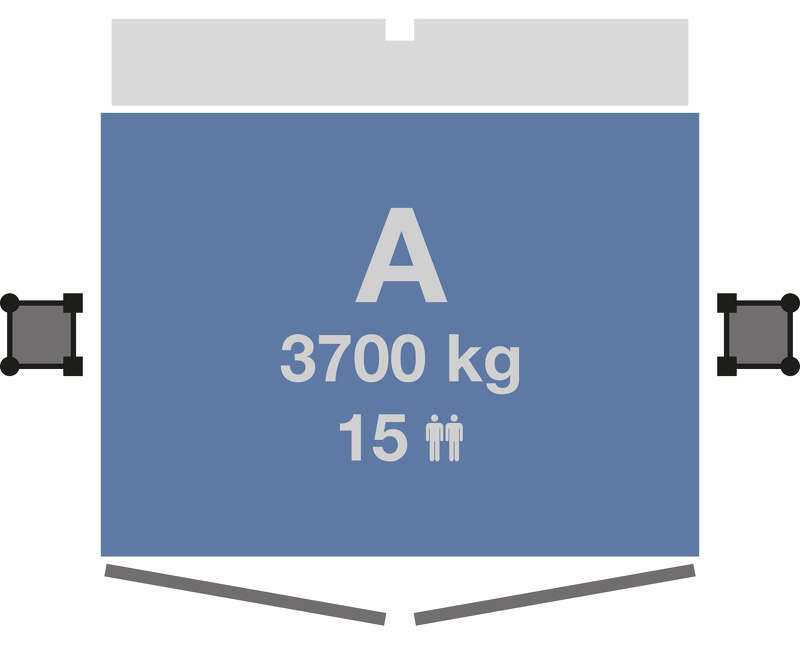

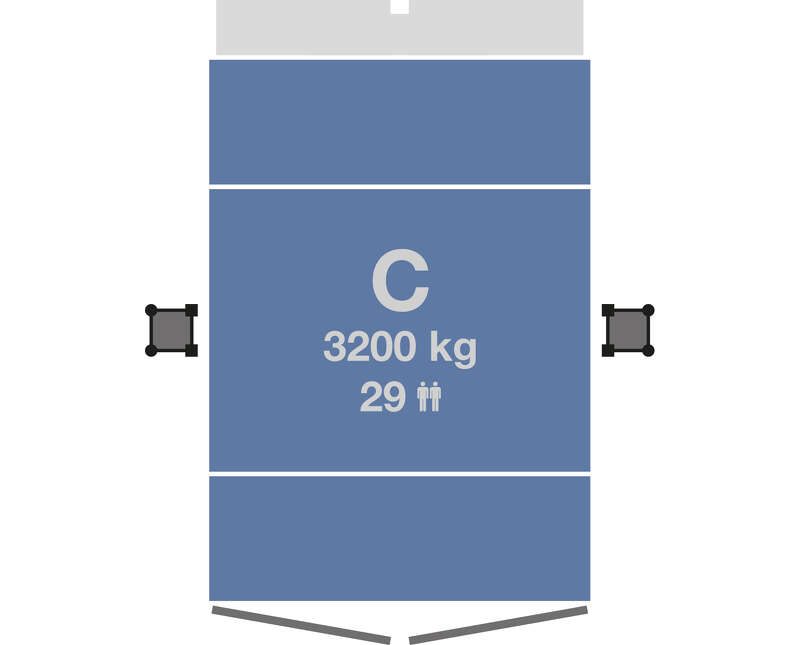

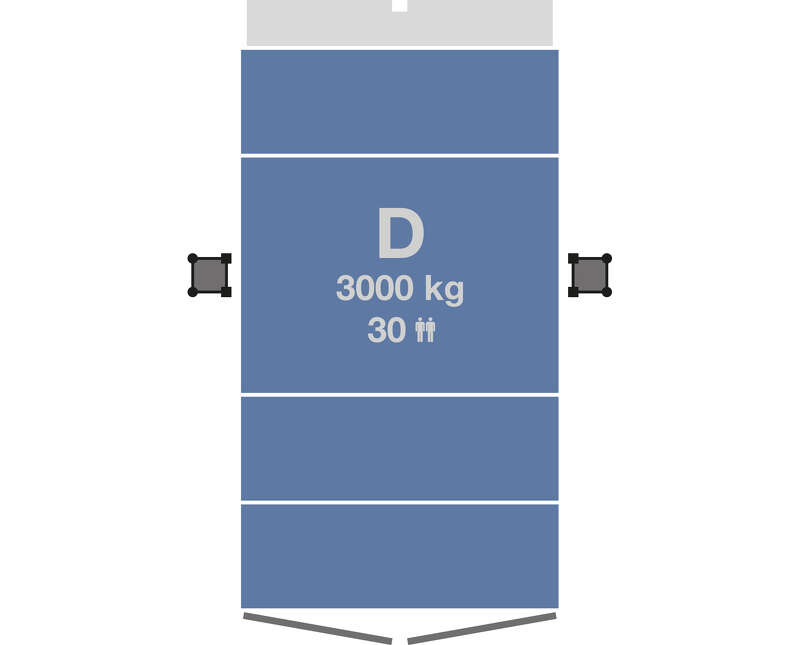

The GEDA 3700 Z/ZP transport platform fully meets the market requirements for higher load capacities and larger platforms. Four different platform variants with a maximum load capacity of 3700 kg allow the transport platform to be used in a wide range of on-site conditions. As a material hoist with a load capacity of up to 3700 kg or as a transport platform for passengers and materials (max. seven people), the GEDA 3700 Z/ZP is a two-in-one-device. The transport platform is a strong partner for heavy loads and efficient working and transports loads quickly and safely up to a height of 200 metres, with a speed of 12 m/min in passenger mode and 36 m/min in material mode. The most important benefit of the GEDA 3700 Z/ZP, however, is the large platform. The four different variants with different load capacities are particularly suitable for transporting very bulky and heavy goods.
GEDA 3700 Z/ZP
| Cargo | Personnel and Materials |
| Mast system | GEDA VARIO-MAST / GEDA SVARIO-MAST |
| Load capacity (material) | 3700 kg |
| Load capacity (persons) | 7 Persons |
| Lifting height | 200 m |
| Lifting speed | 12 m/min / 36 m/min |
| Power supply | 28 kW / 400 V / 50 Hz / 63 A |
Here you can see additional information about the selected variant
