GEDA 1200 Z/ZP
Description
The large loading capacity of the GEDA 1200 Z/ZP transport platform allows quick and safe transport even of bulky and heavy construction materials. With two separate controls, the GEDA 1200 Z/ZP can be used simply as a material hoist with a lifting speed of 24 m/min or as a transport platform for passengers and materials with a lifting speed of 12 m/min. Various platform modules with different load capacities and sizes offer the right solution for any area of application and any challenge at a construction site. Despite the high load capacity of up to 1500 kg, the transport platform is guided on only one mast of the proven GEDA VARIO-MAST system. With an adapter mast, the GEDA 1200 Z/ZP can also be operated with the GEDA SVARIO-MAST.
Product catalogue
> Product catalogue
GEDA Document Center
> Documents
Product website
> to the product website
GEDA 1200 Z/ZP
| Cargo | Personnel and Materials |
| Mast system | GEDA VARIO-MAST / GEDA SVARIO-MAST |
| Load capacity (material) | 1500 kg |
| Load capacity (persons) | 7 Persons |
| Lifting height | 130 m |
| Lifting speed | 12 m/min / 24 m/min |
| Power supply | 2 x 3 kW / 6.1 kW / 400 V / 50 Hz / 32 A |
Please select a product variant!
Here you can see additional information about the selected variant
Here you can see additional information about the selected variant
Product variants
GEDA 1200 Z/ZP

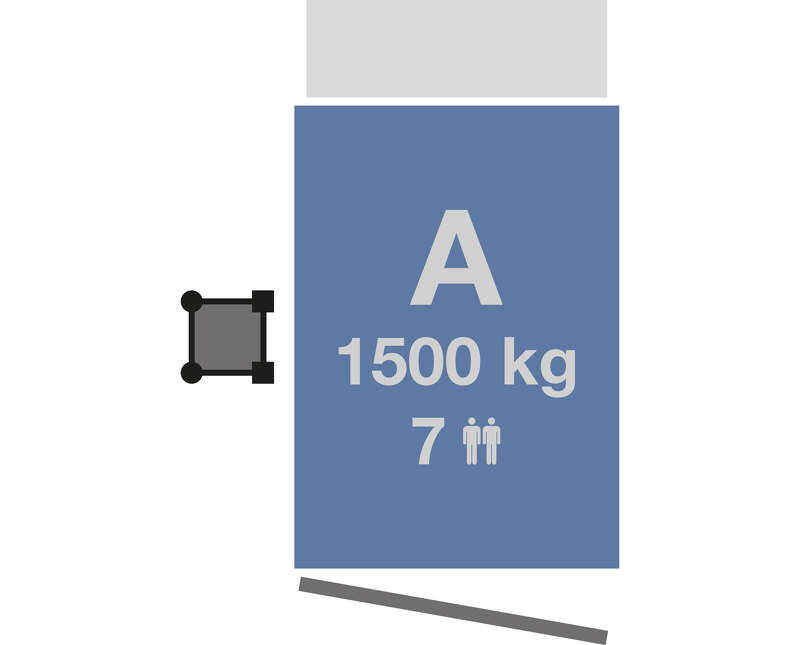

Platform A (Modular)
1 loading door
1 unloading flap
1 unloading flap
GEDA 1200 Z/ZP

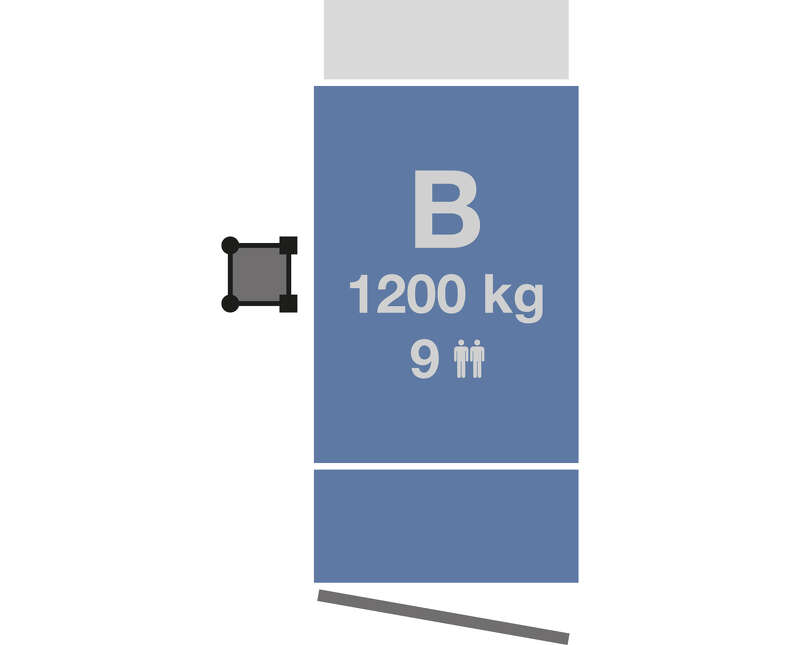

Platform B (Modular)
1 loading door
1 unloading flap
1 unloading flap
GEDA 1200 Z/ZP
Platform C (Modular)
1 loading door
1 unloading flap
1 unloading flap
GEDA 1200 Z/ZP

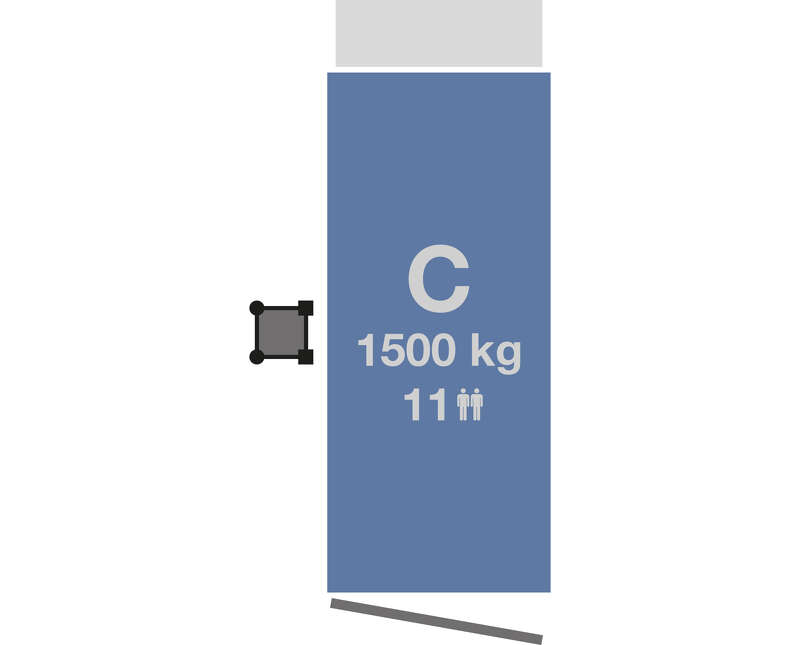

Platform C 1500 kg
1 loading door
1 unloading flap
1 unloading flap
GEDA 1200 Z/ZP
Platform C 1500 kg
1 loading door, 1 loading door on the front side
1 unloading flap
1 unloading flap
