GEDA 300 Z
Description

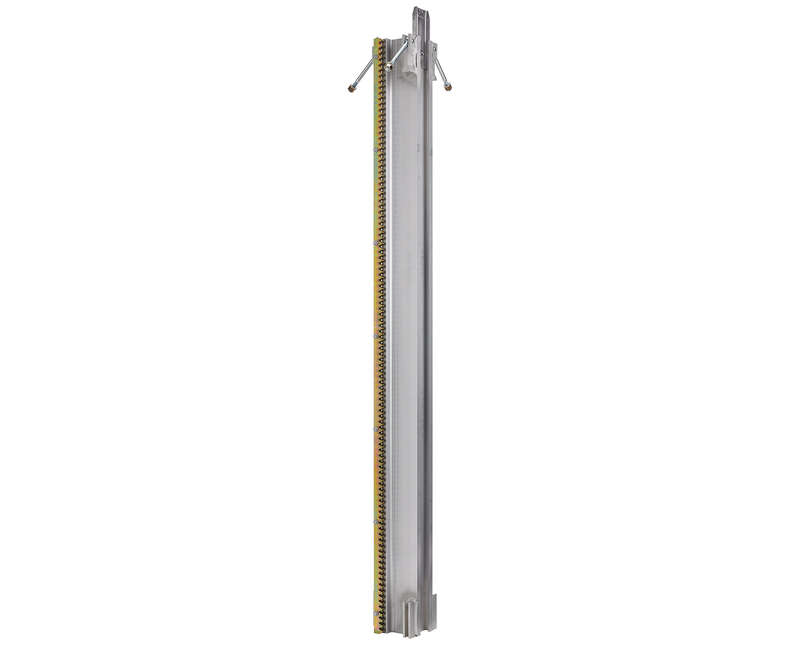

Whether scaffolding elements, tools or other construction materials: The GEDA 300 Z is the compact and robust partner for efficient material transport at construction sites. The lightweight 2-m aluminium mast elements can be assembled by one person. The convenient loading and unloading ramp ensures comfortable access to the platform, which is approved for transporting up to 300 kg. Once at the landing level, the car of the GEDA 300 Z, which can be swivelled by 90 degrees, allows a safe transition and comfortable loading and unloading. The GEDA 300 Z is available in a 230 V or a 400 V version and can therefore be adapted ideally to the power supply at the construction site.
Product catalogue
> Product catalogue
GEDA Document Center
> Documents
Product website
> to the product website
GEDA 300 Z
| Cargo | Material |
| Mast system | GEDA ALU-MAST |
| Load capacity (material) | 300 kg |
| Lifting height | 100 m |
| Lifting speed | 30 m/min |
| Power supply | 2.5 kW / 400 V / 50 Hz / 16 A |
| Platform dimension | 0.75 m x 1.4 m x 1.1 m / 1.8 m |
