GEDA 1500 Z/ZP

Product video
Description

The GEDA 1500 Z/ZP has two separate control systems and can be used either as a material hoist only or as a transport platform for passengers and materials. The transport platform control with a speed of 12 m/min is activated for transporting passengers and materials. For transporting construction materials only, the device is switched to the material hoist mode with a lifting speed of 24 m/min. One device, numerous possibilities: the double-mast GEDA 1500 Z/ZP transport platform ideally adapts to virtually any conditions on site thanks to the convenient modular system with 14 different platform versions and different load capacities. The large loading platform variants of the GEDA 1500 Z/ZP offer plenty of space – even for transporting particularly heavy and bulky materials. Despite high load capacities of up to 2000 kg, the proven double mast system ensures a stable and smooth travelling motion.

GEDA 1500 Z/ZP
Cargo Personnel and Materials
Mast system GEDA UNI-X-MAST
Load capacity (material) 2000 kg
Load capacity (persons) 7 Persons
Lifting height 100 m
Lifting speed 12 m/min / 24 m/min
Power supply 2 x 3 kW / 6.1 kW / 400 V / 50 Hz / 32 A
Product variants
GEDA 1500 Z/ZP
...

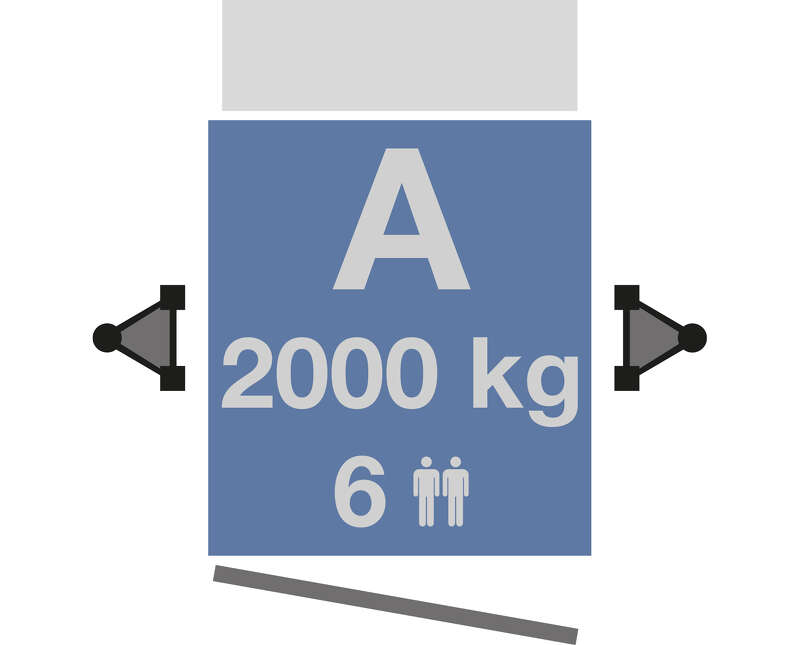

Platform A
1 loading door
1 unloading ramp
GEDA 1500 Z/ZP
...

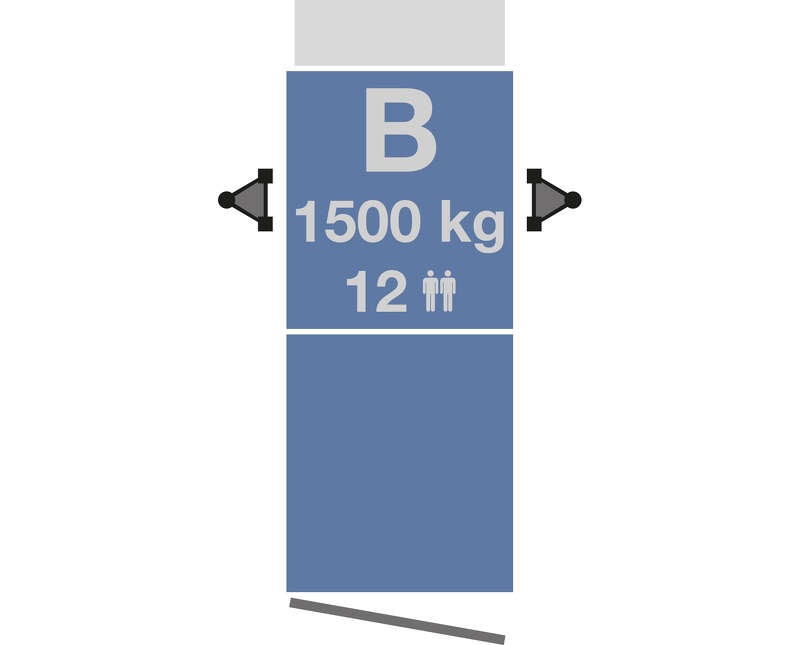

Platform B
1 loading door
1 unloading ramp
GEDA 1500 Z/ZP
...

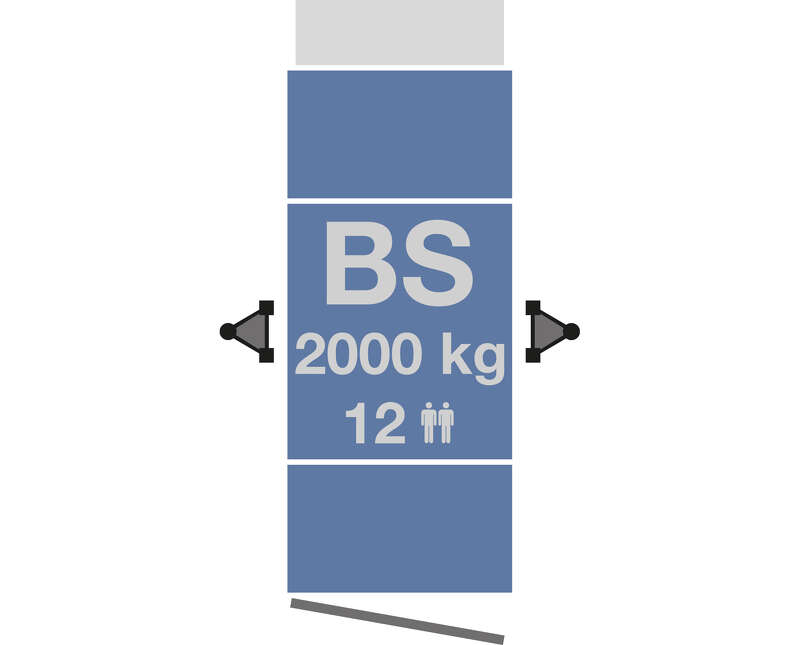

Platform BS
1 loading door
1 unloading ramp
GEDA 1500 Z/ZP
...

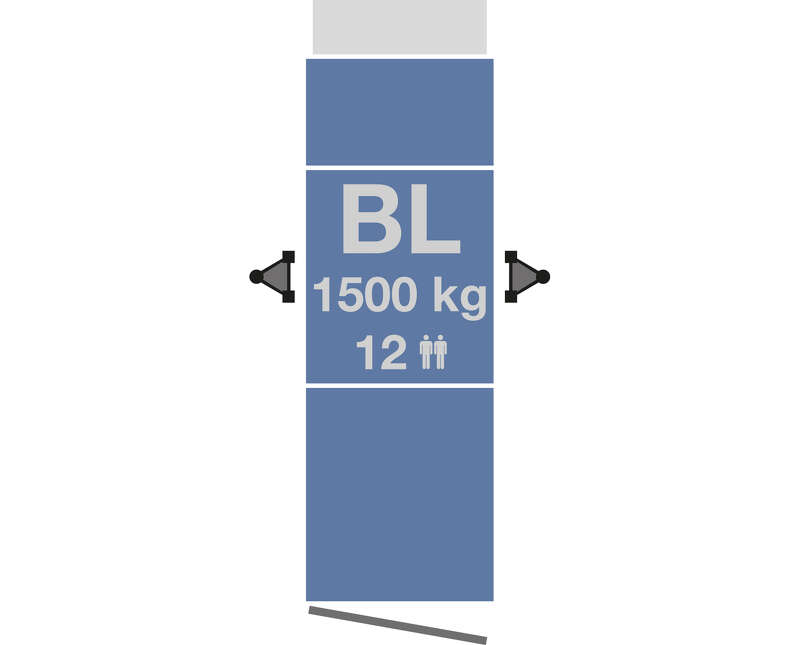

Platform BL
1 loading door
1 unloading ramp

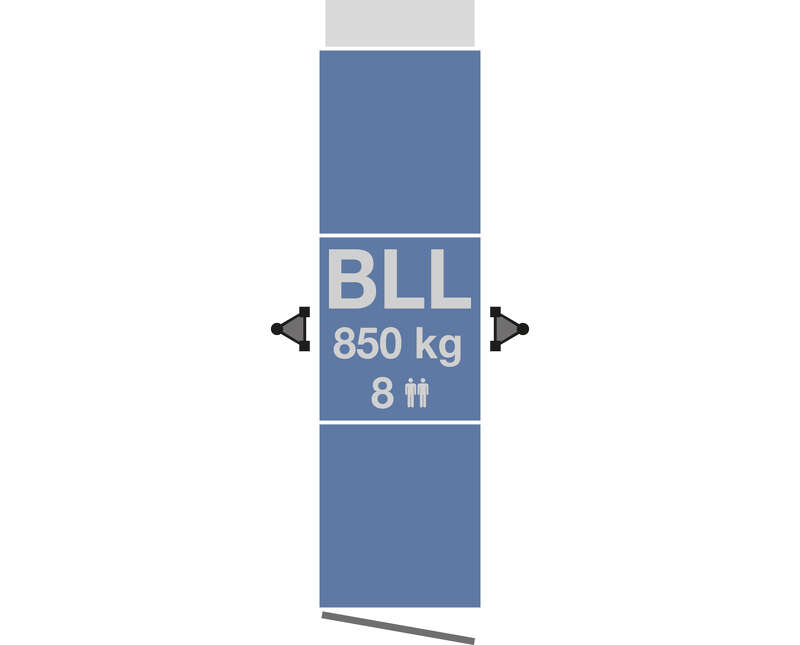

GEDA 1500 Z/ZP
...
Platform BLL
1 loading door
1 unloading ramp
GEDA 1500 Z/ZP
...
Platform C
2 loading doors
1 unloading ramp left
GEDA 1500 Z/ZP
...
Platform D
2 loading doors
1 unloading ramp right
GEDA 1500 Z/ZP
...

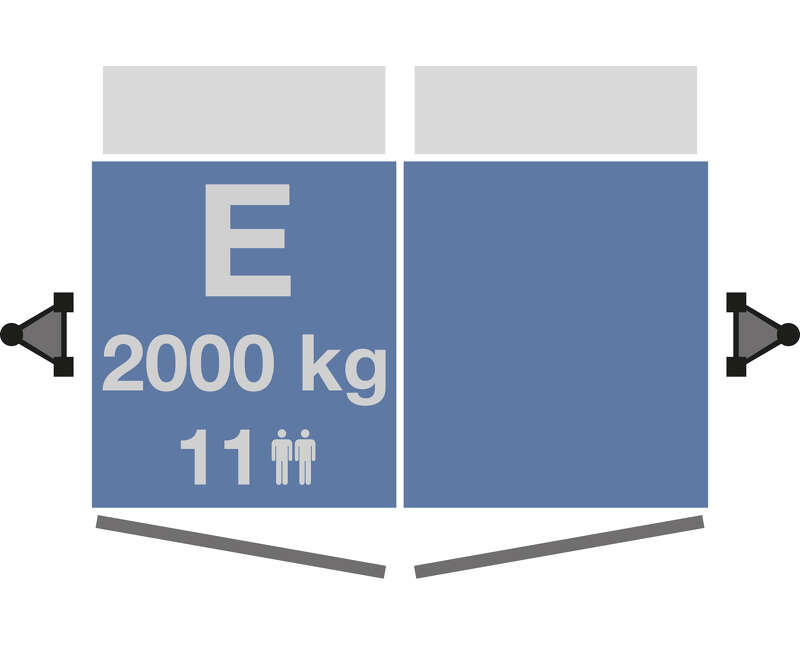

Platform E
2 loading doors
2 unloading ramps
GEDA 1500 Z/ZP
...

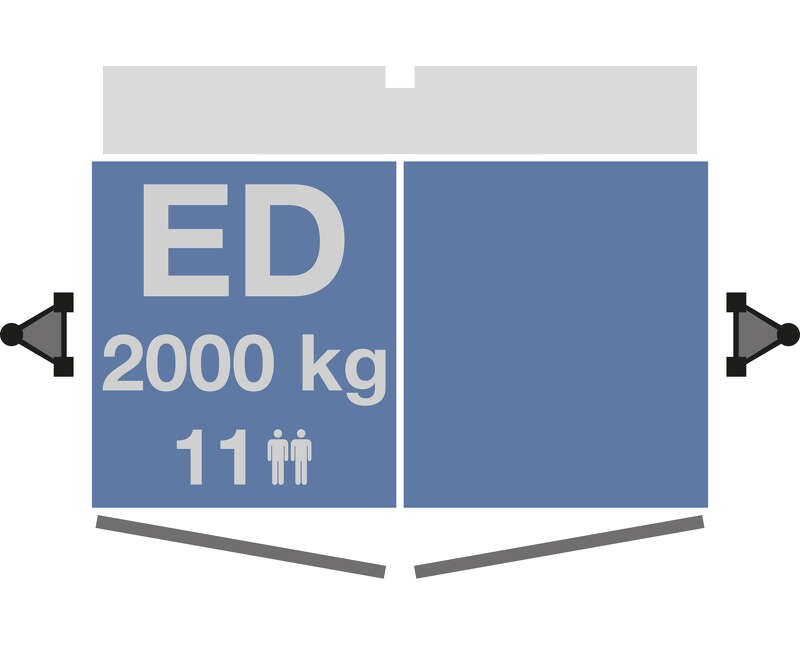

Platform ED
2 loading doors
1 unloading ramp 2.8 m opening width
GEDA 1500 Z/ZP
...
Platform F
2 loading doors
1 unloading ramp left
GEDA 1500 Z/ZP
...
Platform G
2 loading doors
1 unloading ramp right

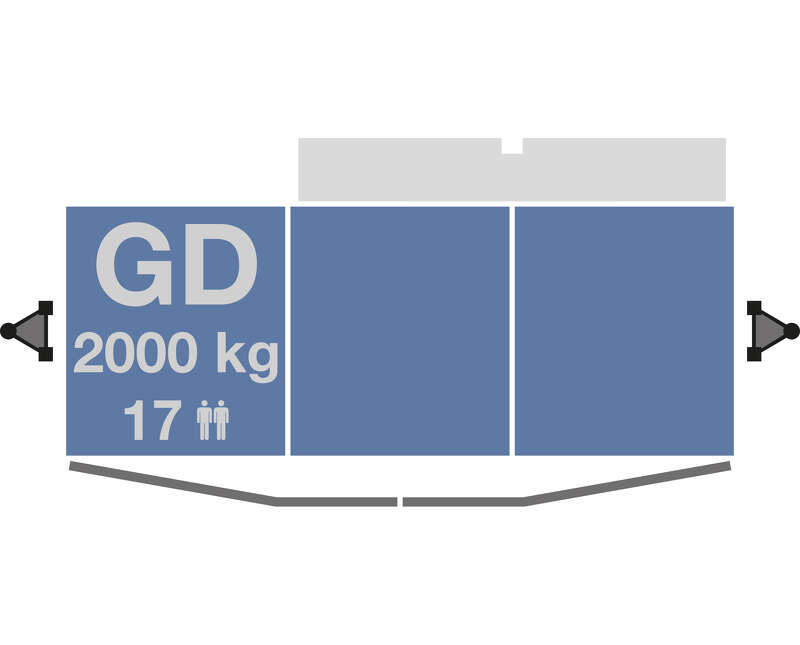

GEDA 1500 Z/ZP
...
Platform GD
2 loading doors
1 unloading ramp 2.8 m opening width
GEDA 1500 Z/ZP
...

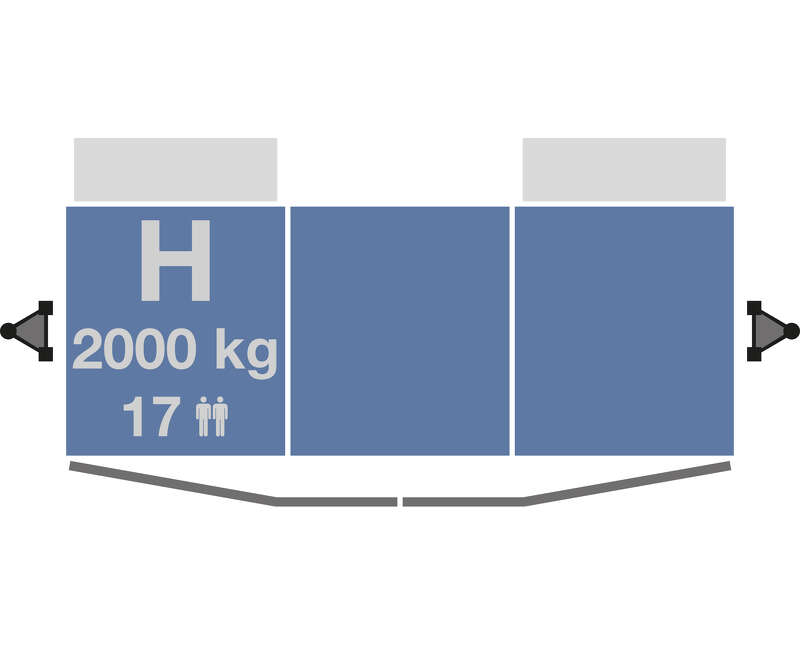

Platform H
2 loading doors
2 unloading ramps
GEDA 1500 Z/ZP
...

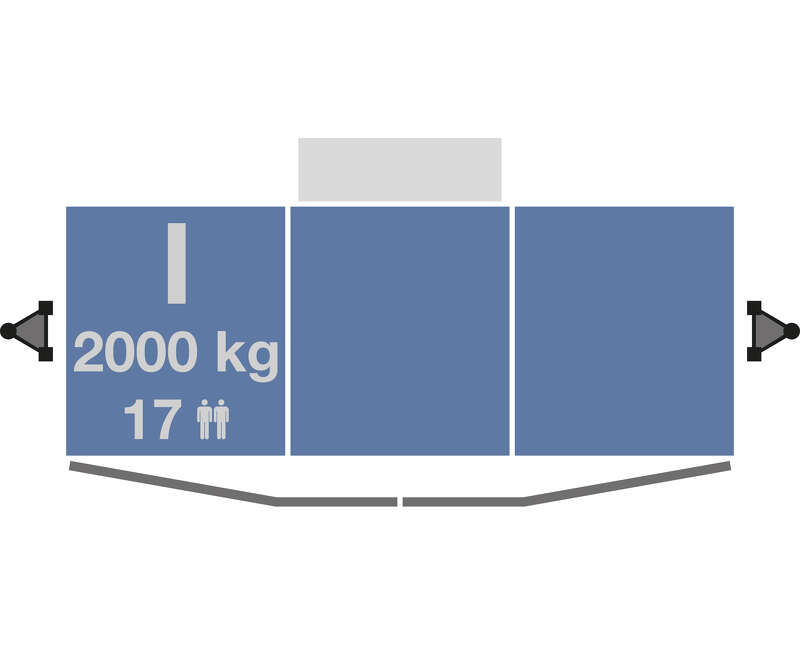

Platform I
2 loading doors
1 unloading ramp middle
