GEDA 500 Z/ZP

Product video
Description

The GEDA 500 Z/ZP transport platform has been specifically designed for use in tough building site conditions and is extremely flexible. With two separate controls, it can be used simply as a material hoist or as a transport platform for passengers and materials. A lifting speed of 24 m/min in material mode and 12 m/min in passenger mode ensures rapid construction progress. The 500 Z/ZP transport platform is an indispensable aid for rapid assembly of scaffolding as well as for the subsequent work at the construction site. With minimal space requirements, high load capacity and various application options, the construction hoist saves time and ensures optimum logistics processes on site. Every construction site has its own challenges. Different platform versions with different loading doors and flaps therefore allow optimum adaptation of the GEDA 500 Z/ZP to the requirements on site. The spacious loading platform without cover provides sufficient space for all types of construction materials.

GEDA 500 Z/ZP
Cargo Personnel and Materials
Mast system GEDA UNI-X-MAST
Load capacity (material) 850 kg
Load capacity (persons) 5 Persons / 500 kg
Lifting height 100 m
Lifting speed 12 m/min / 24 m/min
Power supply 3 kW / 6.1 kW / 400 V / 50 Hz / 16 A
Product variants
GEDA 500 Z/ZP
...

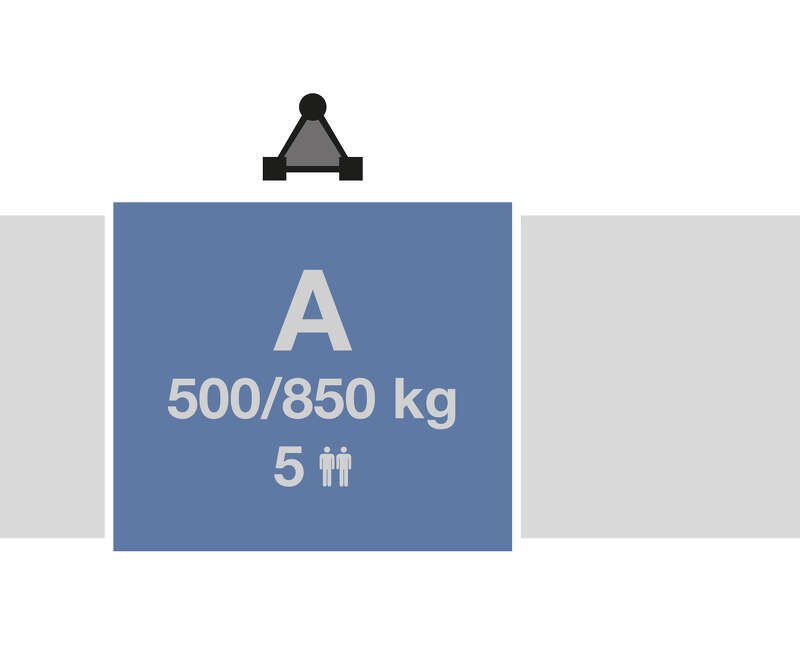

Platform A
1 loading flap
1 unloading flap
GEDA 500 Z/ZP
...

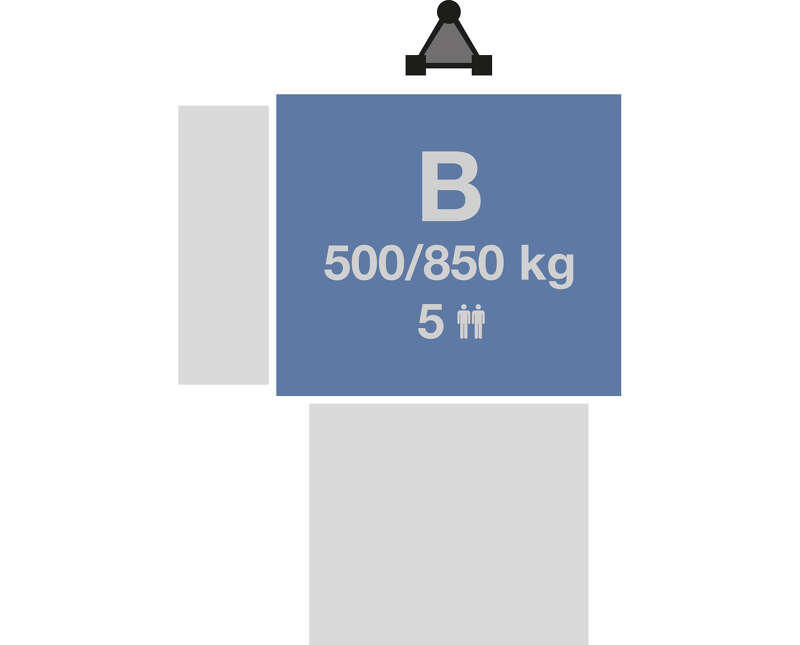

Platform B
1 loading flap
1 unloading flap
GEDA 500 Z/ZP
...

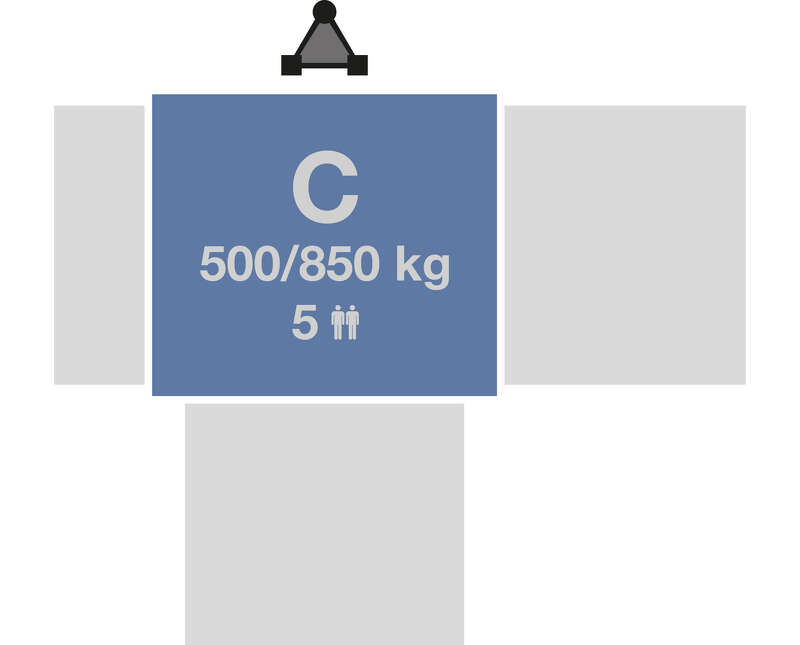

Platform C
2 loading ramps
1 unloading flap
GEDA 500 Z/ZP
...

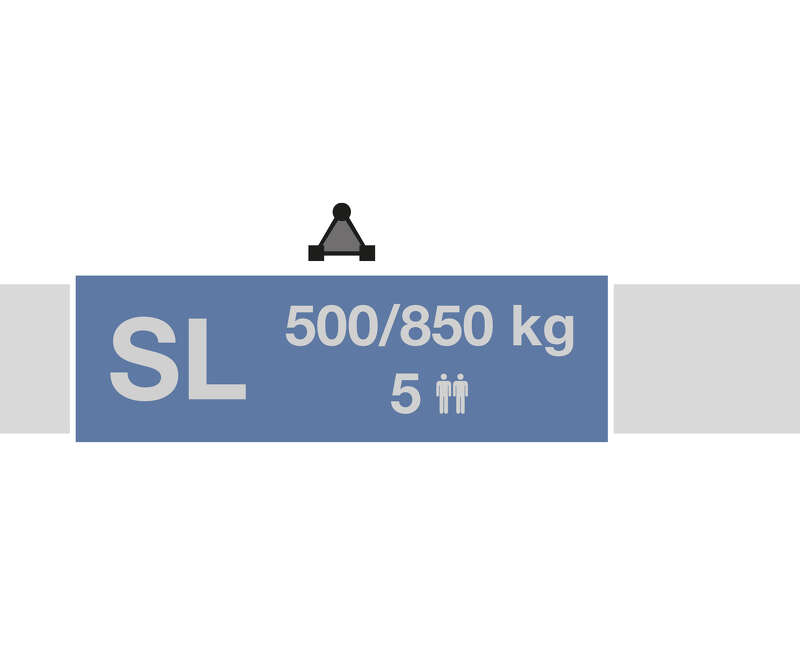

Platform SL
1 loading ramp
1 unloading flap
