GEDA 300 Z/ZP
Description
The “baby” among the GEDA transport platforms features a range of benefits. When folded, the GEDA 300 Z/ZP is only 0.85 m wide, allowing easy transport to the construction site – even through narrow driveways. With the convenient fork lift pockets, the complete device can easily be transported with a pallet truck or fork lift truck. Once at the construction site, the GEDA 300 Z/ZP reveals its true size: its compact 1.35 x 0.95 m platform and the flat cable bin can be set up even on the narrowest pavements and in the smallest courtyards. The two separate controls quickly turn the material hoist into a transport platform which is also approved for transporting up to three passengers. In addition to the 400 V model, the device is also available as a 230 V version. The 230 V hoist can simply be connected to the existing power supply without requiring a separate high-voltage connection. This is often a great advantage, especially when renovating older buildings.
GEDA 300 Z/ZP
| Cargo | Personnel and Materials |
| Mast system | GEDA UNI-X-MAST |
| Load capacity (material) | 500 kg |
| Load capacity (persons) | 3 Persons |
| Lifting height | 50 m |
| Lifting speed | 12 m/min |
| Power supply | 1.9 kW / 400 V / 50 Hz / 16 A |
| Platform dimension | 0.95 m x 1.35 m x 1.1 m / 1.8 m |
Here you can see additional information about the selected variant

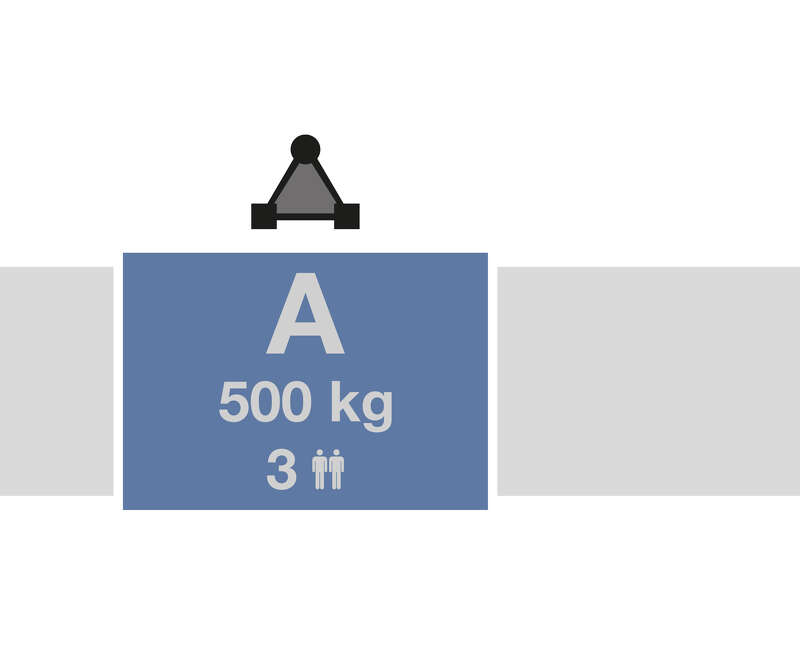

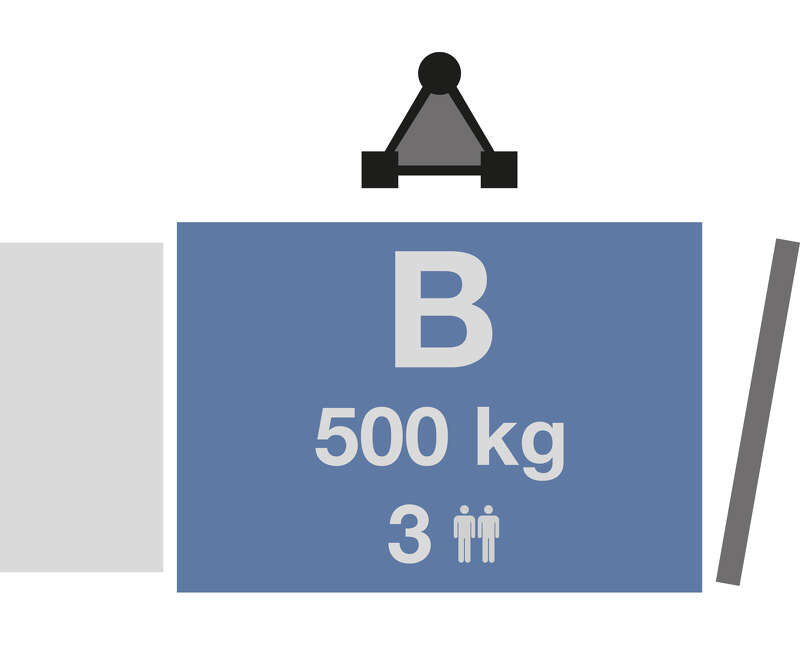

Product variants
Loading ramp
Loading door
Loading ramp
Loading door
Loading ramp
Loading door
